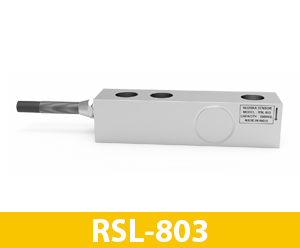

Single Ended Shear Beam Load Cells are among the most widely used load cell types in industrial weighing systems. Their robust design, compact size, and high precision make them ideal for a wide range of applications, including platform scales, tank weighing, conveyor systems, and batch processing. These load cells are designed to measure force or weight by sensing the strain caused by shear force. Below are the key advantages of using single ended shear beam load cells in industrial environments.
1. Compact and Space-Efficient Design
One of the biggest advantages of single ended shear beam load cells is their compact size and low profile. They are specifically designed to fit in tight spaces, making them perfect for applications where space is limited. This allows engineers to integrate them easily into small-scale or modular weighing systems without compromising performance.
2. High Accuracy and Repeatability
Single ended shear beam load cells are known for their excellent accuracy and repeatability. This is crucial in industrial weighing processes where precise measurement is essential for product quality, inventory control, and process consistency. Their ability to provide stable and repeatable readings under varying conditions makes them highly reliable in critical operations.
3. Easy Installation and Alignment
Installing a single ended shear beam load cell is relatively simple compared to other load cell types. With mounting typically done at one end while the load is applied to the other, alignment becomes easier. This straightforward installation process reduces downtime and labor costs during setup or replacement.
4. Ideal for Medium-Capacity Weighing Applications
These load cells are best suited for medium-range weighing needs, typically from 50 kg to several tons. That makes them ideal for platform scales, hopper scales, bagging machines, and small tank weighing systems. Their performance remains stable even under repeated loading and unloading cycles.
5. Cost-Effective Solution
Single ended shear beam load cells offer a great balance between performance and cost. They are more affordable than many high-capacity or specialty load cells, yet still provide robust measurement capabilities for a wide range of industrial tasks. Their cost-efficiency makes them a popular choice for OEMs and equipment manufacturers.
6. Robust and Durable Construction
Built with stainless steel or alloy steel, these load cells are made to endure harsh industrial environments. They resist moisture, dust, and chemical exposure when paired with appropriate protection (such as IP67 or IP68 ratings). This durability ensures long service life, even in demanding operations like food processing or outdoor weighing.
7. Compatibility with Various Mounting Assemblies
Another benefit is their compatibility with a variety of mounting kits and accessories. Whether you need anti-vibration mounts, overload protection, or rocker assemblies, single ended shear beam load cells can be easily integrated with existing industrial setups. This flexibility supports better customization and retrofitting.
8. Minimal Maintenance Requirements
Thanks to their rugged design and stability, single ended shear beam load cells require minimal maintenance. Once installed correctly, they continue functioning efficiently with very little intervention. This reduces downtime, lowers maintenance costs, and improves overall system efficiency.
