In modern textile and fabric manufacturing, maintaining consistent web tension is one of the most critical factors in ensuring high-quality output. Whether it’s weaving, knitting, non-woven production, dyeing, coating, or finishing, even the slightest variation in fabric tension can lead to defects such as wrinkles, tears, uneven dyeing, or misaligned patterns. To overcome these challenges, manufacturers rely on web tension load cells, which measure and monitor the exact tension levels during the production process.
By providing real-time tension data, web tension load cells not only improve product quality but also increase machine efficiency, reduce downtime, and minimize waste. However, their performance heavily depends on correct selection, proper installation, and regular calibration. In this blog, we will explore the applications of web tension load cells in textile and fabric manufacturing, followed by the common installation mistakes to avoid.
What is a Web Tension Load Cell?

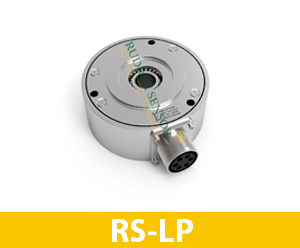

A web tension load cell is a specialized force sensor designed to measure the tension applied to moving webs such as yarns, fabrics, films, foils, or paper. The load cell is usually mounted on machine rollers, where it senses the strain or deflection caused by web force and converts it into an electrical signal. This data is then processed by control systems to adjust roller speeds and maintain consistent web tension throughout production.
In textile and fabric industries, where precision and reliability are critical, web tension load cells are indispensable for achieving optimal product quality and cost efficiency.
Applications of Web Tension Load Cells in Textile & Fabric Manufacturing
Textile and fabric manufacturing involves a wide variety of processes, each requiring specific tension control to ensure defect-free output. Here are some key applications:
- Weaving and Knitting Machines
In weaving and knitting operations, yarns must be fed at a controlled tension. Web tension load cells ensure consistent yarn tension to prevent thread breakage, loose loops, or uneven weaving patterns. They also help in reducing material wastage and machine downtime caused by yarn snapping.
- Non-Woven Fabric Manufacturing
Non-woven fabrics are bonded using mechanical, chemical, or thermal processes. Here, web tension load cells monitor fiber tension across rollers, ensuring uniform bonding strength, even thickness, and better fabric durability.
- Dyeing and Printing Lines
In dyeing, printing, and coating, fabric tension determines how well the dye or chemical is absorbed. Uneven tension can result in color streaks, patches, or distorted prints. Web tension load cells prevent these issues by keeping fabric flow consistent across the line.
- Finishing and Coating Processes
Processes such as lamination, calendaring, or fabric finishing require precise tension to avoid stretching, shrinkage, or wrinkles. Load cells ensure proper roller pressure and fabric alignment, which improves the overall finish.
- Inspection, Slitting, and Rewinding Lines
During fabric inspection or slitting, uneven web tension can cause edge curling, misalignment, or tearing. Load cells help maintain uniform web tension, ensuring smooth inspection and precise cutting without damaging the fabric.
- Textile Packaging and Rolling
When fabrics are wound into rolls for packaging, incorrect tension can lead to loose winding, core collapse, or telescoping rolls. Web tension load cells ensure even winding tension for compact, high-quality rolls ready for shipment.
👉 In summary, applications in textile and fabric manufacturing are diverse, and any stage that involves fabric movement across rollers benefits from web tension load cells.
Benefits of Using Web Tension Load Cells in Textile Industry
- Consistent Quality – Prevents weaving defects, uneven dyeing, and surface irregularities.
- Higher Productivity – Reduces downtime caused by thread breakage or fabric jams.
- Material Savings – Minimizes waste caused by improper tension.
- Better Process Control – Provides real-time monitoring and feedback for automated systems.
- Enhanced Durability – Reduces machine wear and tear by maintaining balanced loads.
Common Installation Mistakes to Avoid with Web Tension Load Cells
Even the best-quality web tension load cell cannot perform well if not installed correctly. Here are the most common mistakes that manufacturers should avoid:
- Incorrect Mounting or Misalignment
Improper alignment between the roller and load cell creates side loads and uneven force distribution, leading to inaccurate readings. The load cell should always be mounted according to the manufacturer’s specifications.
- Wrong Load Capacity Selection
If the load cell is undersized, it may overload and fail quickly. If it’s oversized, it won’t detect smaller changes in tension. Always calculate the expected web tension range and choose a load cell with an appropriate safety margin.
- Improper Roller Placement
Load cells should be mounted at strategic roller positions where tension can be accurately measured. Incorrect placement can reduce sensitivity and affect feedback control systems.
- Skipping Calibration
One of the biggest mistakes is forgetting to calibrate the load cell after installation. Without calibration, readings may drift, leading to inconsistent fabric tension and poor product quality.
- Ignoring Cable and Signal Management
Loose cables or poor shielding can introduce electrical noise into the signal, affecting accuracy. Proper cable routing and shielding are essential for stable performance.
- Exposure to Excessive Vibration or Shock Loads
If the load cell is placed in a high-vibration area, false readings may occur. Similarly, sudden shock loads from machine starts/stops can damage the sensor. Protective mounting and damping systems should be used in such environments.
- Environmental Neglect
Textile environments may involve high humidity, temperature variations, or chemical exposure. Failing to choose the right load cell material or protective coating can reduce its lifespan.
Best Practices for Installing Web Tension Load Cells
- Always follow manufacturer’s mounting guidelines.
- Select a load cell with the right capacity range.
- Ensure roller alignment to avoid side loads.
- Calibrate load cells after installation and periodically thereafter.
- Use shielded cables to avoid signal interference.
- Protect load cells from vibration, dust, and humidity.
Conclusion
Web tension load cells are indispensable for the textile and fabric industry, where precision and consistency determine product quality. From weaving and knitting to finishing and packaging, these sensors ensure that fabrics maintain the right tension at every stage. However, their efficiency depends not just on their technology but also on proper installation and maintenance. By avoiding common mistakes such as misalignment, wrong load range selection, or neglecting calibration, manufacturers can maximize productivity, reduce waste, and deliver superior textile products.
