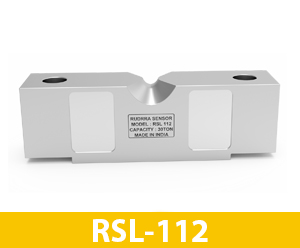

A weighbridge is one of the most important tools in industries such as transportation, logistics, mining, and agriculture, where accurate weight measurement of trucks and heavy vehicles is essential. At the heart of every reliable weighbridge lies the load cell, and among the different types, the Double Ended Shear Beam Load Cell is the most preferred for heavy-duty applications. Its design, accuracy, and durability make it an ideal solution for weighing large loads with precision.
Double Ended Shear Beam Load Cells are mounted at multiple points under the weighbridge platform. When a truck drives onto the weighbridge, the load from the vehicle is transferred through the platform onto the load cells. These load cells measure the applied force using strain gauges and convert it into an electrical signal, which is then processed by the weighbridge indicator to display the truck’s exact weight. This system ensures a high level of accuracy even when vehicles are unevenly loaded or not positioned perfectly on the platform.
One of the key reasons why Double Ended Shear Beam Load Cells are widely used in weighbridges is their ability to handle very high loads. They are specifically designed to withstand heavy-duty weighing, making them suitable for trucks carrying tons of material. In addition, they offer excellent resistance to side forces, vibrations, and shock loads, which are common in weighbridge operations. This ensures consistent performance and reduces errors during measurement.
Another important advantage is long-term reliability. Weighbridges are often installed in outdoor environments, exposed to rain, dust, mud, and temperature variations. Double Ended Shear Beam Load Cells are manufactured with high-quality stainless steel or alloy steel and come with hermetic sealing and IP-rated protection, allowing them to perform in tough environmental conditions without frequent maintenance.
Accuracy is critical in weighbridge applications because even small errors in weight measurement can result in financial losses, regulatory issues, and disputes. The design of Double Ended Shear Beam Load Cells provides superior accuracy and repeatability, ensuring that every truck weight recorded is correct. This makes them highly trusted in industries where reliability and compliance with legal-for-trade standards are essential.
In conclusion, the role of Double Ended Shear Beam Load Cells in weighbridge applications cannot be overstated. They provide strength, durability, and accuracy that match the demanding requirements of truck weighing. Whether it is for industrial plants, logistics hubs, or mining sites, these load cells ensure smooth and precise weighbridge operations, making them an indispensable component in modern weighing technology.
